active cooling into higher power models, keeping the

ultimate aesthetics while enhancing efficiency and

functionality. Latest AK-mount Mavis high-definition

prime lenses, achieves micron-level precision, delivering

rich, pure colors and sharp contours. Power up to 40W,

color temperatures of 3000K, 3500K, and 4000K with UV

filters, CCT filters, color filters, barn doors, and other light

control accessories optional.

Off-axis design, compact Ø64mm form, 360° rotation

and 270° tilt, 15 seconds quick focus and tuning, Quadux

A4 provides incomparable precision art framing and

accurate illumination for museums and galleries.

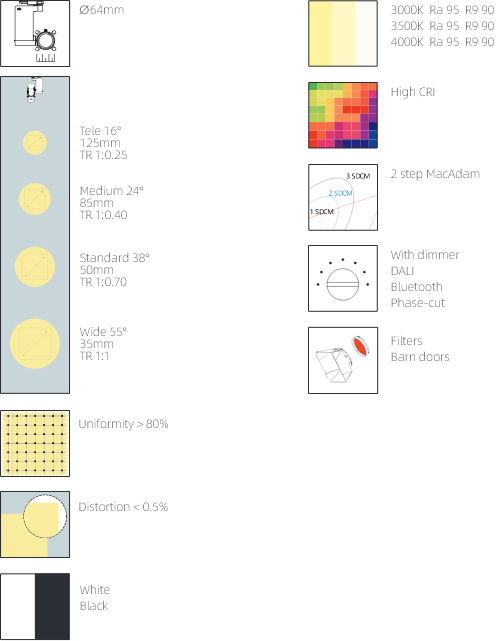

Suitable for museums and galleries: 3m-12m (in height)

Wattage: 14W, 24W, 28W, 40W

Input voltage：220~240Vac 50/60Hz

LED module: high-power COB, LED life span over 50000

hours

Beam angle: Mavis lenses, Tele 16°, Medium 24°, Standard

38° and Wide 55°

Color temperature:3000K,3500K,4000K,optional 2700K,

5000K,etc.

Color rendering index: 95

Luminous flux of LED module*: 1420lm~3205lm

SDCM: 2 step MacAdam

Rotation & tilt: 360°/270°

Adapter: 3-circuit, compatible with various track models

Control mode: DALI, with dimmer, Phase-cut, Bluetooth

Brightness control range: 0-100%

Interchangeable prime lens: free among Tele 16°, Medium

24°, Standard 38° and Wide 55°

Color: white, black

Housing and bracket: cast aluminium, powder-coated

with electrical box side cover and luminaire rear cover of

new PC + glass fiber

* 4000K as an example.

Equipped with EXCELDON’s newly developed Mavis series "Four Great Kings" high-definition fixed-focus lenses with AK bayonet, it achieves micron-level precise light cutting and control. The shaped light for images is saturated, pure, uniform, and transparent with sharp edges.

Quadux A4 has rated powers of 14W, 24W, 28W, and 40W, with color temperature options of 3000K, 3500K, and 4000K. It features a 64mm filter bayonet, and comes with a full range of accessories including UV filters, color temperature conversion filters, as well as various optical filters such as red and blue ones, and 8-blade barn doors.

Quadux A4 adopts an offset-axis design with an overall diameter of only 64mm. It uses thermal-electric separation, supporting 360° horizontal and 270° vertical rotation (3-dimensional adjustment), and 15-second quick focusing and dimming.

Inheriting EXCELDON’s minimalist industrial design, it combines powerful functions with optics, mechanics, and aesthetics. It perfectly matches the architectural style of contemporary museums and art galleries, making it an essential equipment for precise light cutting, shaping, and refined lighting in museums and art galleries.

Applicable Height for Museum & Art Gallery Exhibitions: 3m — 12m

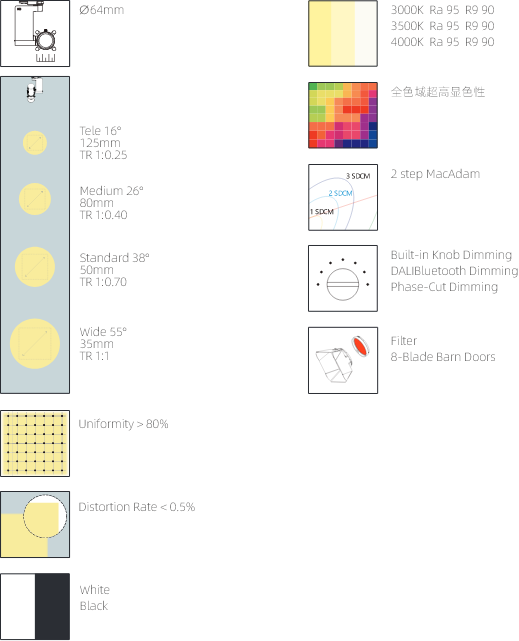

Lamp Power: 14W, 24W, 28W, 40WInput Voltage: 220~240Vac 50/60HzLED Optical Module: High-power COB, chip lifespan > 50,000 hoursLight Type & Beam Angles: Mavis series lenses — Telephoto 16°, Medium 26°, Standard 38°, Wide-angle 55°Color Temperature: 3000K, 3500K, 4000K (2700K, 5000K optional)Color Rendering Index: 95LED Module Luminous Flux*: 1420lm~3205lmColor Tolerance: 2 SDCMAdjustment: 360° horizontal rotation, 270° vertical rotationTrack Clip: 3-circuit, compatible with various types of tracksControl Modes: DALI, Built-in Knob Dimming, Phase-Cut Dimming, Bluetooth Dimming, etc.Dimming Range: 0-100% flicker-free dimmingInterchangeable Lenses: Mavis series lenses (Telephoto 16°, Medium 26°, Standard 38°, Wide-angle 55°) are freely interchangeableColor: White, BlackMaterial: Electrical box and lamp body: Die-cast aluminum with powder coating; Electrical box side cover and lamp body rear cover: PC + glass fiber

25dB PC-grade silent fans and overheat

protection unit,automatically cutting power when temperatures exceed safe thresholds,

ensuring stable, high-performance operation.

Precision optical performance with sharp contours

Precision optical performance with sharp contours

With a marble structure, integrated ergonomic design, triaxis 360° and 270° free rotation (horizontal,vertical, and lens axes), significantly improving efficiency in lighting setup and exhibition deployment.

Featuring 0.3mm special hard-alloy steel blades

and 500-grit mirror polishing, the dualisolated blades slide independently without mutual interference, delivering distortionfree beam shaping with exceptional edge definition and field uniformity.

for 28W/40W models

25dB PC-grade silent fans and overheat

protection unit, automatically cutting power when temperatures exceed safe thresholds,

ensuring stable, high-performance

operation.

light control With multi-eleme

lenses, and DEC optimization, Quadux A4

boosts optical efficiency while reducing stray

light and distortion. Four focal lengths include

Tele 16°, Medium 24°, Standard 38°, and Wide

55°, covering all museum lighting needs.

sharp contours

meets exceptional functionality, redefining

exhibition excellence and spatial artistry for

museums and galleries.

projection.

of ambient light conditions

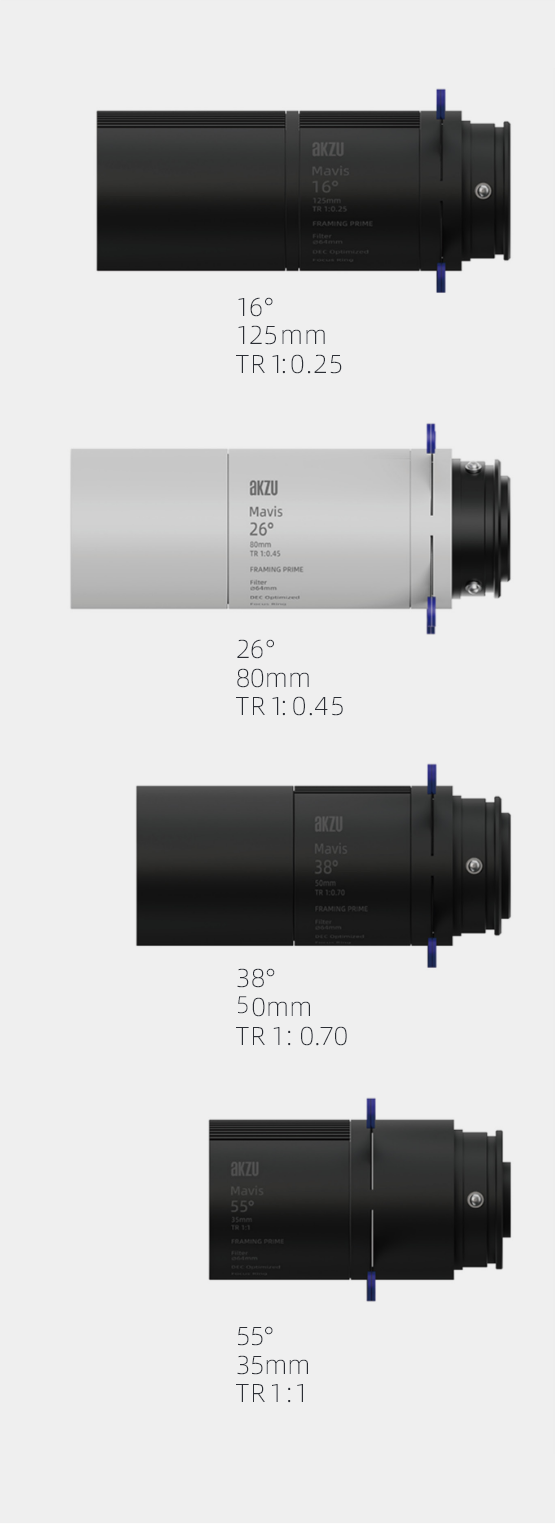

Mavis series prime lenses, precision light control

With multi-element optical design, precision

lenses, and DEC optimization, Quadux A4

boosts optical efficiency while reducing stray

light and distortion. Four focal lengths include

Tele 16°, Medium 24°, Standard 38°, and Wide

55°, covering all museum lighting needs.

AK-mount structure enabling 360° and 270° free rotation,

allowing seamless alignment, beam shaping, and focusing

in 15 seconds

With a marble structure, integrated

ergonomic design, triaxis 360° and 270° free

rotation (horizontal, vertical, and lens axes),

significantly improving efficiency in lighting

setup and exhibition deployment.
