AKZU | Tracron M4R Tri-Color Temperature Museum Tracklight | Lighting Great Museums. The leading professional museum lighting worldwide.

The classic square design, highly integrated and dynamic

Tracron M4R II is the new generation Tracron M4 II series

with three color temperatures, switcheable freely among

3000K, 3500K and 4000K. Beam angles include extremely

narrow, narrow, medium, wide, oval and wallwash. 5

power levels, and equipped with a variety of optical

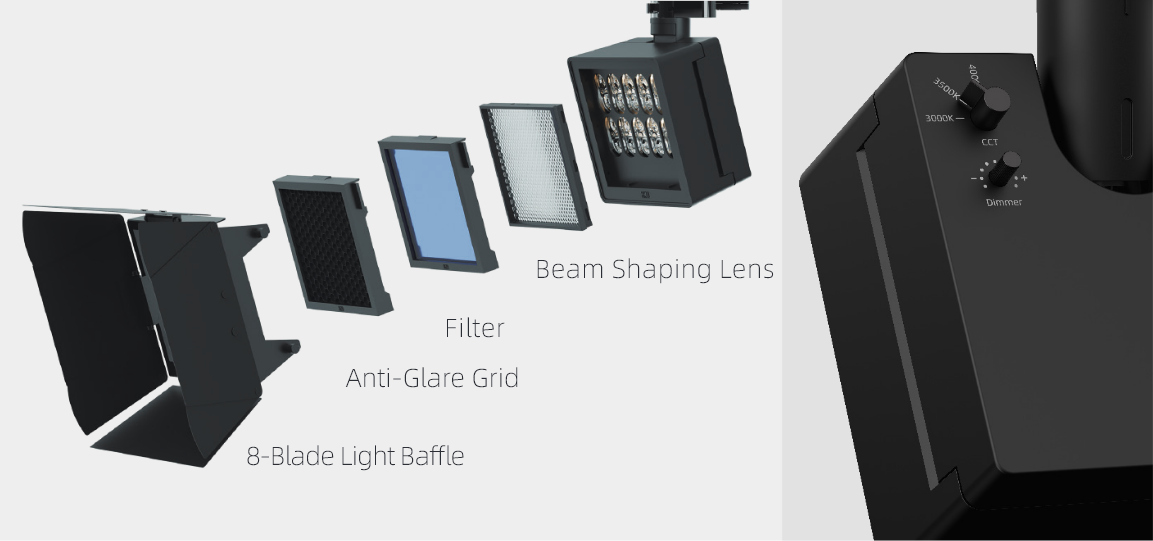

accessories, including interchangeable lens, filters,

honeycombs, barn doors, etc.

Tracron M4R II with three-color temperature switchable,

up to 60W, fully meets the design needs of exhibitions

with rich exhibits and colors. In particular, the 60W realizes

powerful wall-washing lighting of up to 10 meters walls,

achieving a saturated and pure light color, smooth and

penetrating shocking effect.

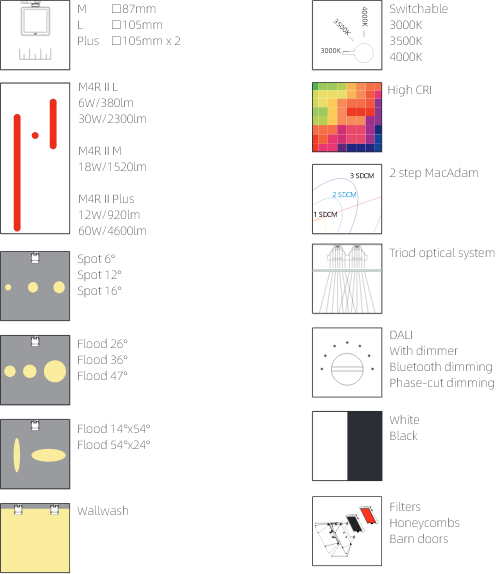

Suitable for museum and art gallery: 3m-10m (in height)

Power: 6W, 12W, 18W, 30W, 60W

Input voltage: 220~240Vdc 50/60Hz

LED module: high-power LEDs, collimating Viva, Dao, Duo

lens, LED life span over 50000 hours

Beam angle: Spot 6° , 12° , 16° , Flood 26° , 36° , 47° ,

54° x14° , 14° x54° , 54° x24° , 24° x54° and Wallwash

Switchable color temperature: 3000K 3500K 4000K

Color rendering index: CRI 95

Luminous flux of LED module*: 380lm~4600lm

SDCM: 2 step MacAdam

Rotation & tilt: 360° x 90°

Adapter: 3-circuit, compatible with various track models

Control mode: DALI, with dimmer, Phase-cut, Bluetooth,

and etc.

Brightness control range: 0-100%

Interchangeable principal lens: Between spot 6° and 12° ,

or among 16° , 26° ,36° , 47° , 54° x14° , 14° x54° , 54° x24° ,

24° x54° , and wallwash

Color: white, black (or customized dual-color)

Housing and bracket: cast aluminium, powder-coated

Front cover: new PC + glass fiber

* 4000K as an example.

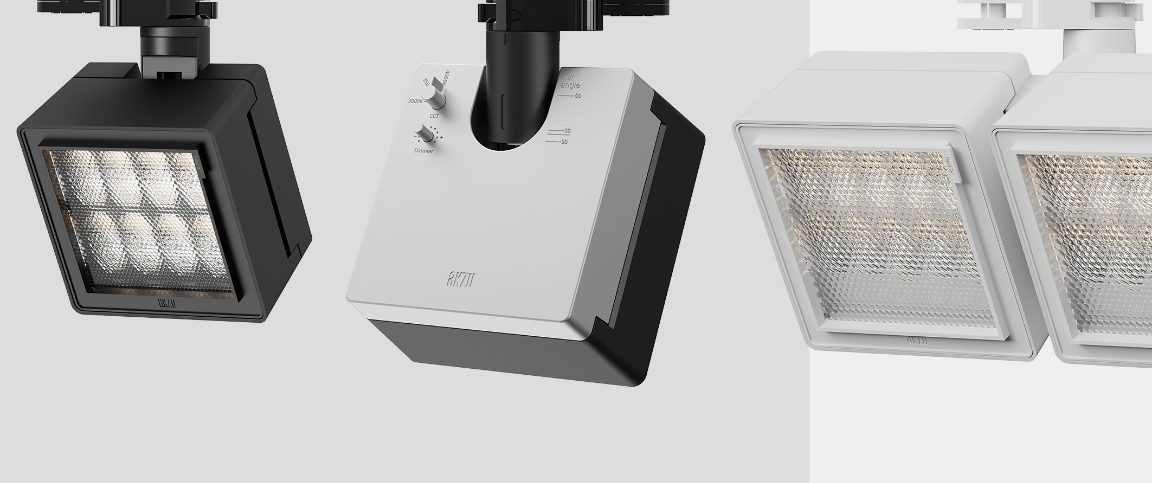

Pure beauty of straight lines and

square geometry

Functional Features

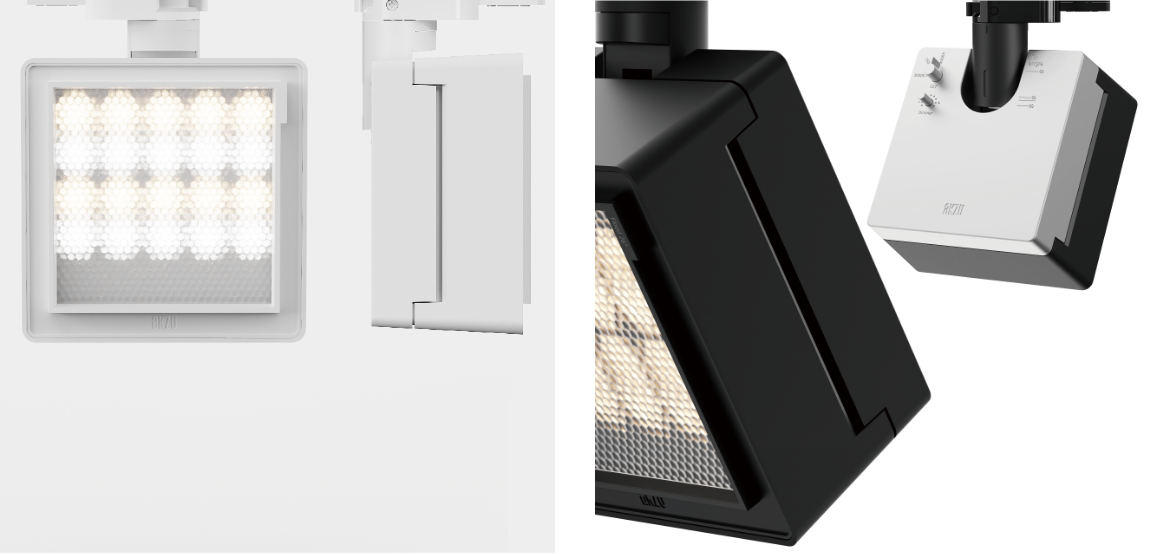

Efficient dual-gill design for superior heat management

Tracron M4R II combines powerful lighting functions with minimalist design aesthetics. The dual-gill design makes it more dynamic and

powerful, which is highly consistent with the architectural design style of contemporary

museums.

The distinctive design of long heat dissipation

gills improves heat dissipation and enhances aesthetics, fostering an efficient air convection

system, reducing the temperatures of LEDs and electronic components.

Pure beauty of straight lines and

square geometry

Tracron M4R II combines powerful lighting functions with minimalist design aesthetics. The dual-gill design makes it more dynamic and powerful, which is highly consistent with the architectural design style of contemporary museums.

Digital beam angle mark: Instant lens selection

Intelligent museum lighting system: powerful tool to ensure the safe illumination

Our upgraded system translates lens

specifications into clear digital formats:

"Spot D" becomes "Spot 6° ", and "Flood H" transforms into "Flood 54° x 24° " . This swift labeling streamlines on-site lens selection.

M4R II supports control modes including DALI,

Zigbee, Bluetooth, etc., enabling preset

scene modes and precise control over

lighting intensity, duration, and exposure, reducing damage to lightsensitive exhibits.

Efficient dual-gill design for superior heat management.

The distinctive design of long heat dissipation gills improves heat dissipation and enhances aesthetics, fostering an efficient air convection system, reducing the temperatures of LEDs and electronic components.

Museum lighting "special troops"! Up to 60W with three color temperatures.

Highly integrated and dynamic Tracron M4R II, beam angles from extremely narrow, narrow, medium, wide, oval and wallwash. 5 power levels, and equipped with a variety of optical accessories, including interchangeable lens, filters, honeycombs, barn doors, etc. Up to 60W, instant color temperature switch among 3000K, 3500K and 4000K, probably the most powerful museum track light with switchable color temperature in the world.

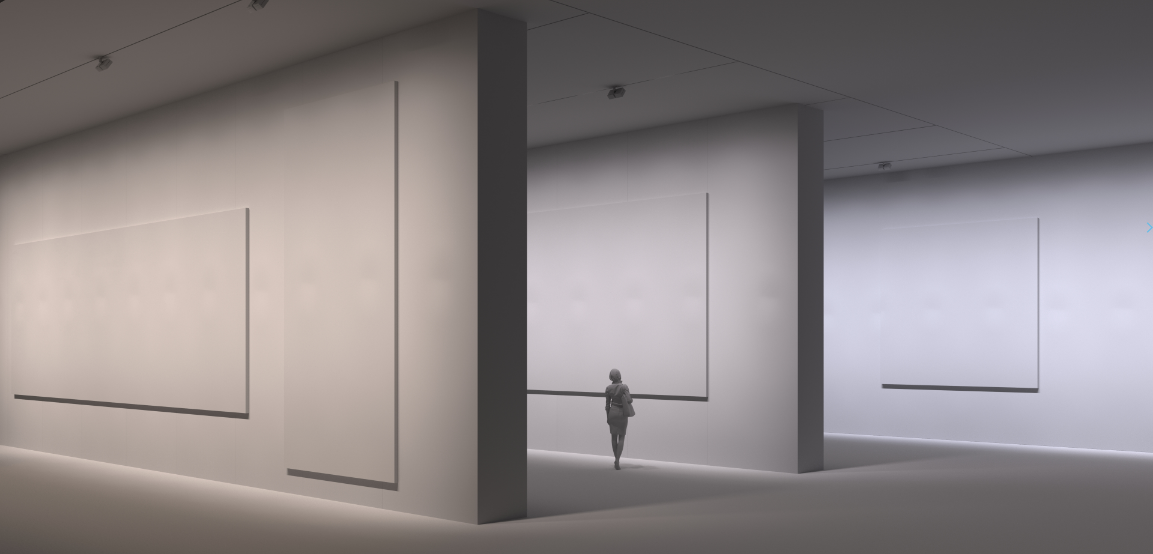

Wall-washing lighting for up to 10-meter-high walls, with saturated and pure light color and smooth penetration.

The wall-washing lighting method is suitable for displaying large-scale art works, expansive backgrounds, and exhibitions with relatively rich works. The three color temperatures of 3000K, 3500K and 4000K can be freely switched to adapt to the exhibition of art works of different colors, materials, styles and periods to achieve the best visual effect.

Digital beam angle mark: Instant lens selection.

Our upgraded system translates lens specifications into clear digital formats: "Spot D" becomes "Spot 6°", and "Flood H" transforms into "Flood 54° x 24°". This swift labeling streamlines on-site lens selection.

Intelligent museum lighting system: powerful tool to ensure the safe illumination.

M4R II supports control modes including DALI, Zigbee, Bluetooth, etc., enabling preset scene modes and precise control over lighting intensity, duration, and exposure, reducing damage to light-sensitive exhibits.

Museum lighting "special troops"! Up to 60W with three color temperatures.

Highly integrated and dynamic Tracron M4R II , beam angles from extremely narrow, narrow, medium, wide, oval and wallwash. 5 power levels, and equipped with a variety of optical accessories, including interchangeable lens, filters, honeycombs, barn doors, etc. Up to 60W, instant color temperature switch among 3000K, 3500K and 4000K,
